Calibration Pots
Calibration Pots
Applications

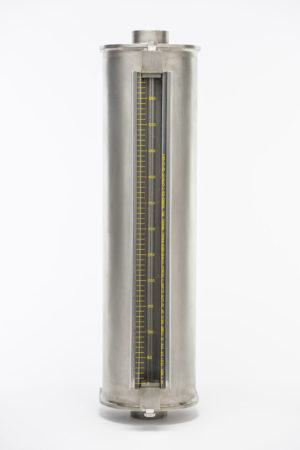

Calibration Pots provide an extremely accurate reading of the pumps output for a wide range of flow rates. The gauge is installed between the suction side of the chemical pump and the chemical storage tank. The flow rate is checked by closing the valve between the tank and gauge and observing the liquid level change in the calibrated scale for one minute (other test times available upon request).
Features
- The Calibration Pot is often the preferred option for offshore installations due to the robust design. The totally enclosed construction ensures maximum safety.
- Provide a means for accurately checking the feed rates of a chemical metering pump.
- Individually hand calibrated to assure maximum accuracy.
Options
- Manufactured in 316 Stainless Steel, Painted Carbon Steel, Hastelloy C-276 and Alloy 20 as standard material options. Other materials including PVC and CPVC available to meet your chemical resistance requirements.
- Customization is always and option. Give us your design criteria and we will design a unit to fit your needs and specifications.
Specifications
Specifications
Model Number/Process Connections
| MODEL NUMBER (CONNECTION SIZE) |
MAXIMUM PUMPING RATE (BASED ON A 1 MINUTE TEST) |
GAUGE VOLUME |
M.W.P (150°F / 65.5°C) |
|||||
| THREADED | FLANGED | GPH | GPD | LPH | LPD | GBV | LBV | PSIG / BAR |
| 15842 (3/4″ FNPT) |
15843 (3/4″ 150#) |
2.5 | 60 | 9.46 | 227.12 | 0.04 | 0.16 | 150 / 10.34 |
| 15844 (3/4″ FNPT) |
15845 (3/4″ 150#) |
5 | 120 | 18.93 | 454.25 | 0.08 | 0.32 | 150 / 10.34 |
| 15846 (3/4″ FNPT) |
15847 (3/4″ 150#) |
10 | 240 | 37.85 | 908.5 | 0.17 | 0.63 | 150 / 10.34 |
| 15848 (1″ FNPT) |
15849 (1″ 150#) |
20 | 480 | 75.71 | 1816.99 | 0.33 | 1.26 | 150 / 10.34 |
| 15850 (1″ FNPT) |
15851 (1″ 150#) |
40 | 960 | 151.42 | 3633.98 | 0.67 | 2.52 | 150 / 10.34 |
| 15852 (1″ FNPT) |
15853 (1″ 150#) |
60 | 1440 | 227.12 | 5450.98 | 1 | 3.79 | 150 / 10.34 |
| 15854 (1-1/2″ FNPT) |
15855 (1-1/2″ 150#) |
80 | 1920 | 302.83 | 7267.97 | 1.33 | 5.05 | 150 / 10.34 |
| 15856 (1-1/2″ FNPT) |
15857 (1-1/2″ 150#) |
100 | 2400 | 378.54 | 9084.96 | 1.67 | 6.31 | 150 / 10.34 |
| 15858 (2″ FNPT) |
15859 (2″ 150#) |
120 | 2880 | 454.25 | 10901.95 | 2 | 7.57 | 115 / 7.92 |
| 15860 (2″ FNPT) |
15861 (2″ 150#) |
140 | 3360 | 529.96 | 12718.94 | 2.33 | 8.83 | 115 / 7.92 |
| 15862 (2″ FNPT) |
15863 (2″ 150#) |
280 | 6720 | 1059.91 | 25437.89 | 4.67 | 17.67 | 70 / 4.82 |
| 15864 (2″ FNPT) |
15865 (2″ 150#) |
440 | 10560 | 1665.58 | 39973.82 | 7.33 | 27.76 | 45 / 3.10 |
| 15866 (2″ FNPT) |
15867 (2″ 150#) |
620 | 14880 | 2346.95 | 56326.75 | 10.33 | 39.12 | 30 / 2.06 |
*Model number 15842 through 15845 gauges are not equipped with end plates. Model number 15846 through 15851 gauges are equipped with 1/4″ thick end plates, but they are round and do not have 7/16″ mounting holes.
*Larger Sizes and Process Connections Available. This Product is Fully Customizable to Meet Your Application Requirements. Consult Factory For Options
Housing Material
- CS = Carbon Steel
- SS = Stainless Steel
- HC = Hastelloy C-276
- A20 = Alloy 20
*Other Housing Materials Including PVC and CPVC Available. Consult Factory For Options
Seals
- V = Fluorocarbon
- A = Aflas
- B = Buna-N
- EP = Ethylene Propylene
- T = FEP Encapsulated Silicone
- K = Kalrez 4079
*Other Seal Materials Available. Consult Factory For Options.
Scale Options
- GPH = Gallons Per Hour
- LPH = Liters Per Hour
- GPD = Gallons Per Day
- LPD = Liters Per Day
- GBV = Gallons By Volume
- LBV = Liters By Volume
* NOTE: Scale type based on a one minute test.
* Other Scale Options Available. Consult Factory For Options.
