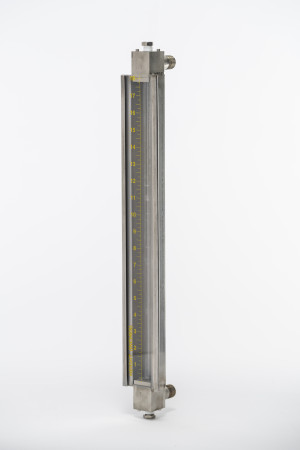

The 8800 Series Level Gauge features 90° connections for ease of installation. The Gauge is fitted with inline 1/4″ FNPT vent and drain connections.  Because the vent and drain connections are inline, glass cleaning is easy.  The centerline dimensional tolerance is 1/16″.  This assures that the gauge will fit the mounting connection of the tank.  The sight tube of the 8800 Series Level Gauge is totally protected.  Three sides of the gauge are enclosed with a metal frame, while the face of the gauge is protected with a polycarbonate shield. This shield can be custom calibrated to read tank volume or any other calibration. Refer to the Product Specifications tab to see the assortment of standard shield options.

Applications

  • For low to medium pressure applications up to 500 psig (34.47 bar)
  • Chemicals
  • Water and waste water
  • Oil or fuel storage
  • Cooling tower water
  • Boiler feedwater

Gallery

K9900 Series Level Gauge K9900 Series Level Gauge

Specifications

Process Connections

  • 88M50 = 1/2″ MNPT
  • 88M75 3/4″ MNPT
  • 88F50 1/2″ FNPT
  • 88F75 3/4″ FNPT
  • 88FL50 1/2″ Flange
  • 88FL75 3/4″ Flange
  • 88FL1.0 1″ Flange
  • 88FL1.5 1 1/2″ Flange
  • 88FL2.0 2″ Flange

Housing Material

  • CZinc Plated Carbon Steel
  • AAll Wetted Parts 316 Stainless Steel with 304 Stainless Steel Frame
  • PCAll Wetted Parts PVC with Carbon Steel Frame
  • PSAll Wetted Parts PVC with Stainless Steel Frame

Sight Tube Material

  • 5/8″ O.D. Standard Glass

*Other sight tube materials available. Consult factory for options.

Seals

  • VFluorocarbon
  • AAflas
  • BBuna-N
  • TESPTFE Encapsulated Silicone
  • EEthylene Propylene

*Other seal materials available. Consult factory for options.

Shield Options - RH

The Rate/Height shield is used for checking the pump rate of a chemical pump. It is calibrated in QTS/24 Hrs., ML/Min and has a height scale labeled in 1/4″ increments.

RH_Shield_Options

Shield Options - H

The Height shield is marked in 1/4″ Increments and labeled every inch.

H_Shield_Options

Shield Options - MRH

The Metric Rate/Height shield is calibrated in ML/Min and Liters/24 hrs. The height scale is labeled in 1 CM divisions.

MRH_Shield_Options

Shield Options - MH

The Metric Height shield is marked in 1 CM increments and labeled every 5 CM.

MH_Shield_Options

Shield Options - M

The Expanded Metal shield is made from flattened expanded metal and is available in electroplated carbon steel or 304 stainless steel.

M_Shield_Options

Shield Options - L

The Clear Polycarbonate shield has no markings, and provides 100% visibility as well as environmental protection.

L_Shield_Options

Custom Shields

KENCO can provide custom scales to meet your needs. The Polycarbonate custom scales are usually engraved and paint-filled. If you are needing scales indicating tank volume or other scale calibrations, please consult the factory.

** Important: Pressure and temperature are dependent on the length of glass and the elastomer chosen. Please consult the factory for minimum and maximum pressure and temperature constraints.
